Fencing

Fencing

In these times of increasing graph of crime and theft, adequate security assumes vital and crucial Importance. To secure your premises you need bevy duty fencing system. That is where you need the expertise of LEGENDS INDIA WIRE PRODUCTS. Its state of art customized hi-security fencing options are designed as per prevailing international standards and to provide security solutions to a diverse range of application like industries, farm houses or residential complex. Use in CONCERTINA COIL, BARBED WIRE, RVT WIRE, CHAIN LINK, PUNCHED TAP, PVC WIRE FENCING.

RAZOR STRIP BARBED TAPE (RSBT, RBT, RVT)

Razor Strip Barbed Tape is available in short; medium and long barbed form barriers and can effectively utilized as an extra at the time of installing any barbed tape concertina and also can be used in place of the conventional barbed wire. On the top of the regular fence, the strip can be installation in 4-6 lines, which makes a very effective barrier and is also extremely economical. Inner Wire Size 12 SWG And Punched Tap 0.5mm. One Coil Cover 100 Meters Are. Weight Of One RVT Coil With Packing 8.400gm to 8.500gm.

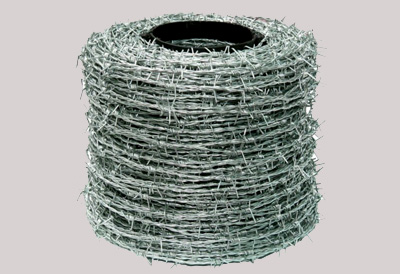

Barbed Wire

Barbed Wire Manufacture By 12 SWG, 13 SWG, 14 SWG
Barbed at 4 inch
Two Point Barb Wire

Barbed Wire 12x12 Wt. in Per 1kg Cover 20 ’Feet Area
Barbed Wire 12x14 Wt. in Per 1kg Cover 25 ’Feet Area
Barbed Wire 14x14 Wt. in Per 1kg Cover 31 ’Feet Area
Barbed Wire 12x12 Wt. in Per 1kg Cover 31 ’Feet Area

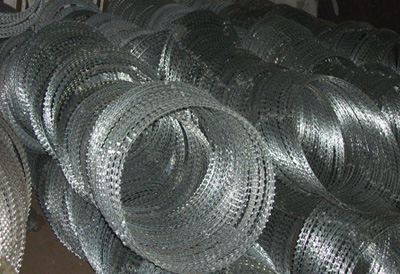

Concertina Coil

Punched Tape Concertina coil can be easily retracted and stored vertically or horizontally. The coil when laid, look like a continuous spring. The arrangement provides protection against intrusion by human and beasts. Total running length of wire in a 1050 mm coil is approx.167mtrs. After lying the effective coil length is approx. 8 to 10 meters. And the width of apporx.980mm each. Each 1050mm coil is provided with two pairs of handles for easy handling and lying.

Thickness of The Spring Core GI Wire	:	2.50+
Thickness of The Tape Punched Tape	:	0.5mm+
No of Clips per Coil	:	125 to 127 Clip (3 to 5 Clips per Circle)
No of Circles per Coil	:	50 to 60 Circle of Wire per Coil.
Running Length	:	There is 6 Mtrs. Running Length of Per Coil as per BIS standard. (1 Running Mtrs. = 15 Mtrs. to 16 Mtrs.)
Packing Detail	:	Packed in Woven Hessian Sacks of in 500 -700 gm
Size Of Concertina Coil	:	450mm / 610mm / 750mm / 1050mm or As per buyer Requirement
Coil Weight	:	Concertina Coil Weight With Packing 8.400Kg To 8.500Kg 610mm or 2 ft
RBT Size	:	12 SWG (2.5mm & 2.60mm)
Razor Blade Sheet Thickness	:	0.50mm
Zinc Coating (Razor Sheet)	:	80 GSM / 120GSM / 230GSM / 275GSM (As per requirement)
Blade Details	:	10 mm to 15mm

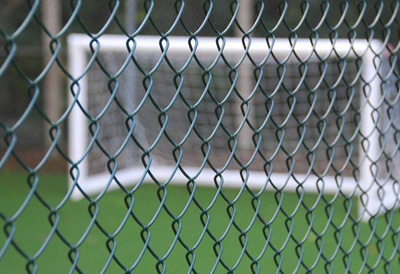

Chain Link Fencing

Chain Link Mesh Size 2 inch x 2 inch, 3 inch x 3 inch, 4 inch x 4 inch
Chain Link Fencing Height Size As Per Customer Requirements
1Sq Feet 12g .170gm to .190gm
1Sq Feet 3mm .275gm to .280gm
1Sq Feet 4mm .470gm to .480gm

Difference between Barbed wire & Concertina Wire

Sr. No.	Barbed Wire	Concertina Wire
1.	Wire Size 12 x 12 Gage.	Wire Size 12 Gage.
2.	Barb on 4” inch (100 mm).	Barb on ¾” inch (19 mm).
3.	Cutting Easy by pliers.	Not cutting easy by pliers.
4.	Hot Dip Galvanized Wire.	Wire Hot Dip Galvanized Wire.
5.	Man & Animals Easily cross on the wire.	Man & Animals cannot cross wire.
6.	Low security.	High security.
7.	Man & Animals are easily touching it.	If any person or Animal touches the wire they could be angered their body & loss their blood.
8.	Every person touches this wire again & again.	Every person never touches this wire in future.
9.	This wire used only Seven States in INDIA.	Most of all states are use concertina wire & also use in other countries for high security.
10.	This wire only use for farmers for their farms.	This wire use any type of industries, Airports, rice sellers, Jails, Hospitals, Army, B.S.F. , Institutes, Railway Etc. for security purpose.
11.	Use Material Galvanized M S.WIRE.	This is High Tensile Wire.
12.	Weight of Wire 15.500kg in 325’	Weight of Wire 8.700kg in 325’

Picket Angles

We Are Manufacturer Any Size Of Picket Angles And any Drawing Of angles For Wall Fencing. We Also Manufacturer Gate Of Iron Pipe/Iron Angles.

Barbed Wire

Barbed Wire

Chain Link Fencing

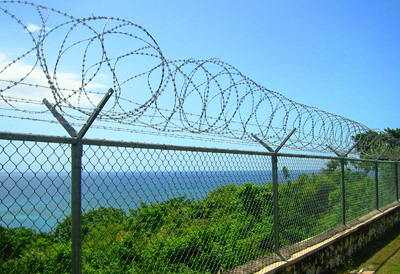

Concertina Coil with Chain Link

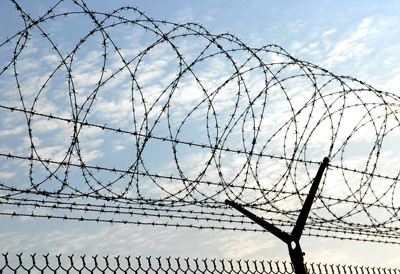

Concertina Coil with Chain Link

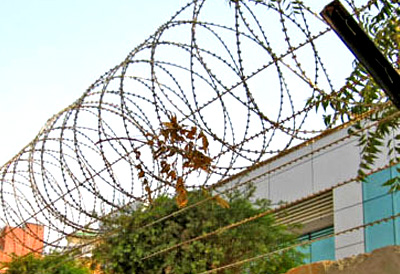

Concertina Coil
